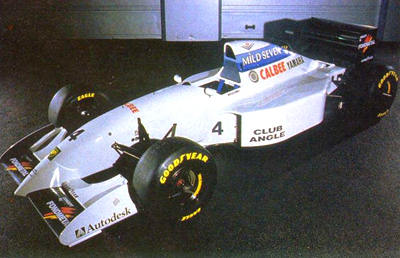

Tyrrell
022 Yamaha
technical
specification |
| Dimensions: |
Wheelbase |
2900 mm |
| |
Track (front) |
1698 mm |
| |
Track
(back) |
1610 mm |
|
Weight |
505 kg |
| Engine |
Yamaha
OX10A |
| Number of cylinders |
10 in 72 layout |
| Number
of valves |
40 |
| Total displacement |
3498 ccm |
| Max
revs |
13800
rpm |
| Engine
electronics |
Zytec |
| Engine
weight |
130 kg |
| Max
power |
700 bhp |
| Fuel
tank capacity |
200 liters |
| Gearbox |
6-speed longitudinal
semiautomatic gearbox |
| Wheels |
11x13"
(front), 16x13" (rear) |
| Tyres |
Goodyear Eagle |
|
Shock-absorbers |
Koni |
|
Brakes |
AP Racing, disks - Hitco |
|
|
Information provided by
Epon |
|
